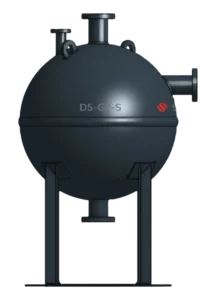

The Defender is the Ultimate
in Form & Function

capture rate graphic
capture rate statistics

A Fully Integrated
Sand Management Solution

separation

Sand Separation

Separates 95%-99% of sand from production.

then
checkmark

Sand Control

Captures and holds 400lb+ more sand.

then
monitor

Sand Monitoring

Monitors sand volume & weight in real-time.

then
screen reporting

Sand Reporting

Sand analysis & reporting for decision making.

The Defender Delivers Confidence in a Big Way

By truly removing more sand from production, the Defender greatly reduces erosion on production & facilities equipment, enabling operations to:

sandtinel logo
graph

Maximize Production Rates

by greatly reducing non-productive time of shut-in & downtime.

guage

Maximize Operational Efficiency

by optimizing field personnel, streamlining operational footprint & reducing the costs of equipment repairs.

cash

Maximize Returns

in production rates, revenue, and profit margins.

Contact Sales

ENGINEERED FOR PEAK PERFORMANCE

The G2-S technology has proven to remove up to 40% more sand from production.

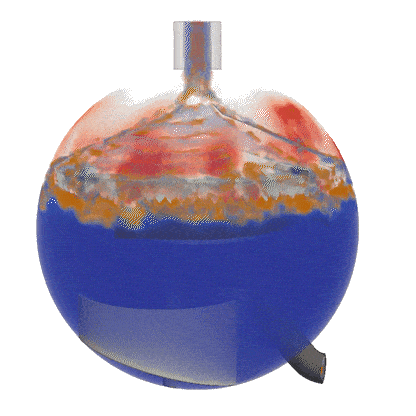

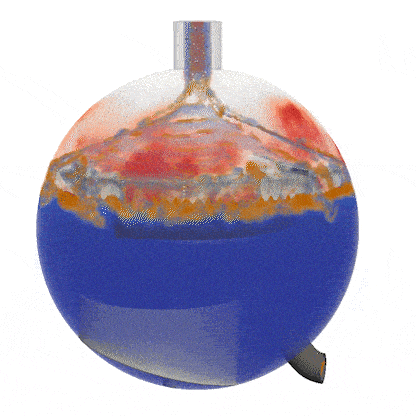

VAPOR-LOCK (VL) UPPER HEMISPHERE

CREATES A TEMPORARY MULTIPHASE SEPARATION.

A large cross-sectional dome shape that creates the vapor lock & temporarily forces a phase separation of the gas from the liquids in the incoming mixture.

SAND-LOCK (SL) LOWER HEMISPHERE

CAPTURES & HOLDS SAND FOR AMPLIFIED STORAGE CAPACITY.

The sand settles into the lower hemisphere where the Sand-Lock, consisting of a cross-shaped vortex breaker & anchor plate, is designed to break up & block vertical recirculation patterns in the center of the vessel & weaken hydrocyclonic suction from the bottom of the vessel.

Measured For Success with the Sand Measurement System (SMS)

Stored sand’s volume and weight can be monitored, trended and reported in real-time with Sandtinel’s Sand Measurement System (SMS) - resulting in better well data analysis & reporting.

Empowering key stakeholders to make informed, strategic decisions regarding current and future well operations.

solar panels

Connect

The SMS’s key components include Sub Skid, Solar Panel, Load Cells, and RTU.

Measure

The sand’s volume & weight is measured and can be reviewed & analyzed in real-time, in the field, or online.

Report

Empower key stakeholders to make informed, strategic decisions regarding operations with better sand data & reporting.

solar panels
worker maintaining unit
sand management system sms reporting
map of sandtinel sites
map of sandtinel sites

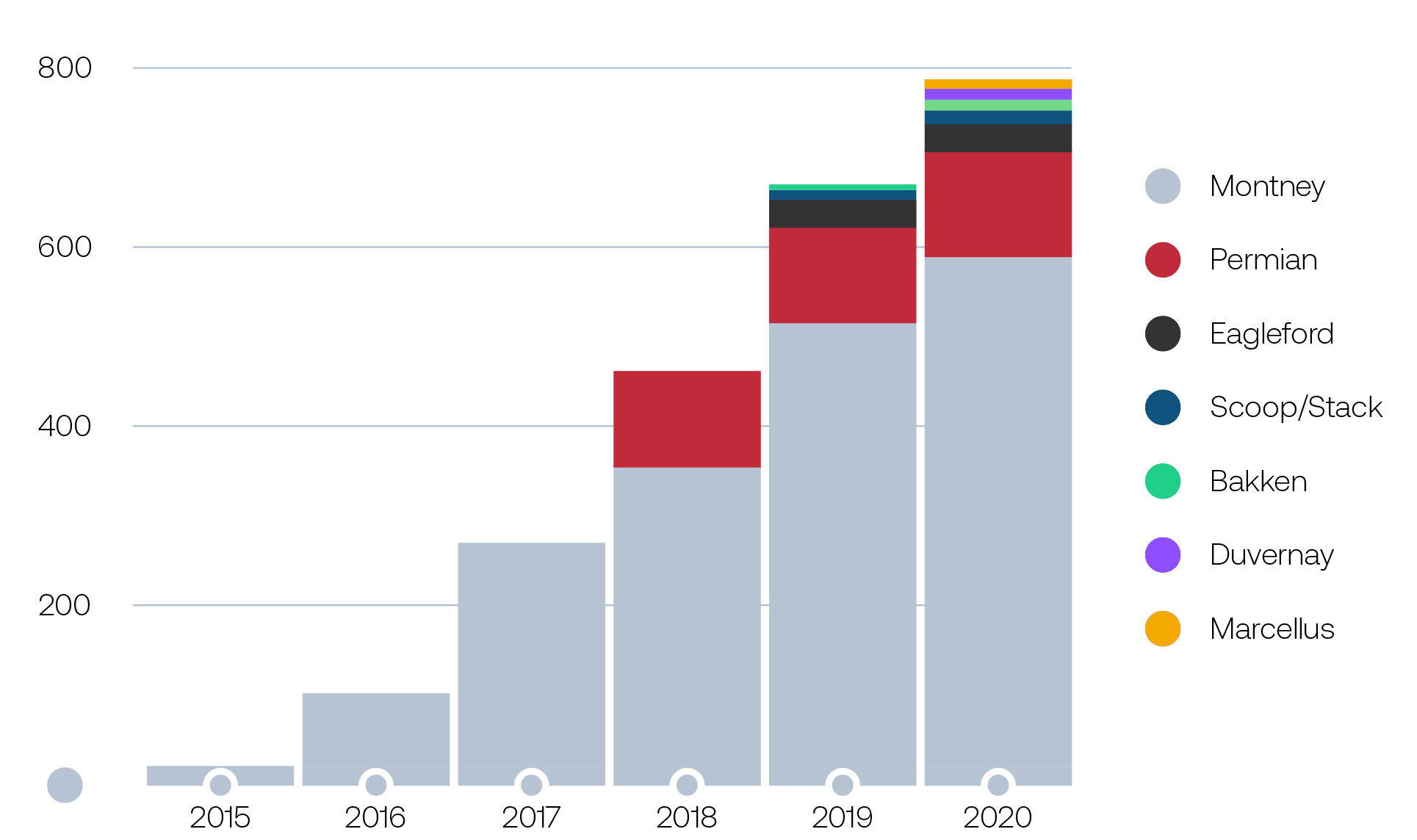

Where We Operate

Today, there are hundreds of Sandtinel units serving production, completion, and facilities stakeholders operating in some of the most complex and challenging basins in the world.

Add-On Features

sandtinel add on features

Instrumentation

1. SMS - Fully integrated solution, from sand separation to real-time reporting.

2. Blowdown Tank Level Switch - Alerts you when sand volume reaches its capacity

3. Level Indicator Transmitter - Sends real-time data

Safety & Logistics

4. Blowdown Tank - Adds additional sand capacity and eliminates depressurizing & opening the vessel

5. Utilidor - Protects equipment from the harsh elements

6. Catadyne Heater - Keeps essential equipment warm in colder months

7. Skid - For easy lift and transport

Let's Get Started

Contact Us
sand separation units

Put The Defender to Work.
These Companies Did.


Here are just some of the producers and flowback companies that have put the Defender to work.

list of client logos
