Revolutionary Sand Separators

It's what's inside that counts.

Hexagon Arrow 02
Arrow Down Simple Red
Hexagon Arrow 02

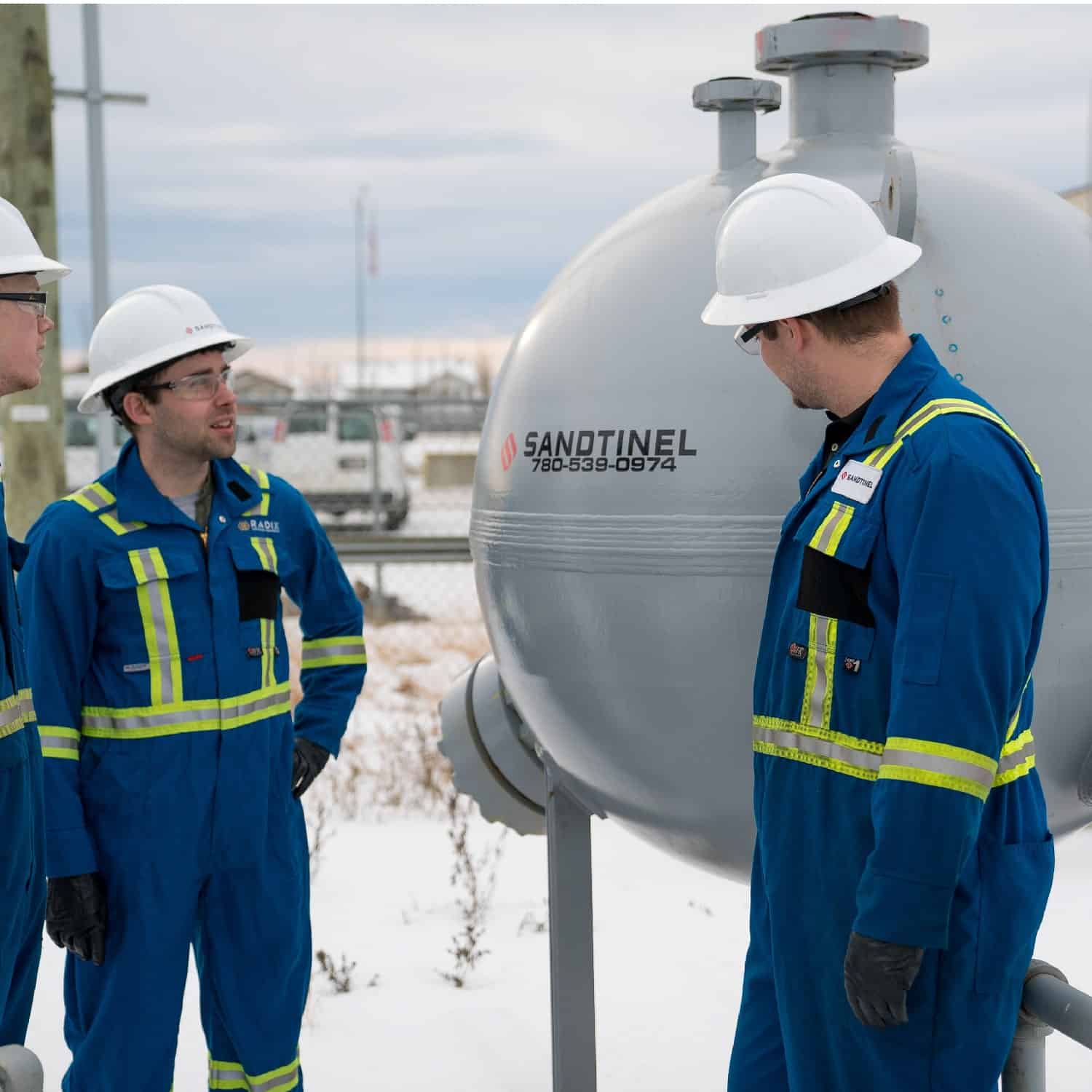

Sandtinel Team Square Min
Zero
Shut Ins
Zero
Plugged Filters
Zero
Raking Sand
Zero
Downtime
Diamond Red Gradient

Flowback & Drillout

If you've got sand, you need Sandtinel.

We specialize in designing and engineering technologically advanced sand separators for the global energy industry. Our army of sophisticated sand separators can combat and eliminate produced sand in virtually any basin or application.

Optimizing Flowback

For smarter, greener, safer and cleaner operations.

Advanced
Emissions Control

Advanced multi-phase particle separation reduces overall environmental impact, emissions, & operating footprint.

Increased
Efficiency

Eliminate operation downtime with on-the-fly, filter less sand removal while maximizing production.

Unmatched
Operator Safety

Sandtinel vessels allow for quick, easy, and safe sand removal. Zero filters, zero raking, zero exposure.

Unrivaled
Value

Minimize operational and variable costs associated with maintenance, downtime, equipment repair, chargebacks, or wear and tear.
Diamond Gray White

The Sandtinel Guard

An army of sophisticated sand separator vessels.
Vessel Defender Unit
Defender
Sandtinel Vessel Logo Defender Alt 01 Final
FLOWBACK | PRODUCTION
TechnologyG2-S
ApplicationFlowback / Production
MAWP5,500 psi
Production Rate10,000 BPD
Size (ID”)48”
Efficient Storage200 - 600 lbs
Capture Rate95+%
Temp Design (°F)-40 to 200
Design StandardASME Sec VIII Div I
Vessel Maverick Unit
Maverick
Sandtinel Vessel Logo Maverick Alt 01 Final
FLOWBACK | DRILLOUT | WATER
TechnologyG4-S
ApplicationFlowback
MAWP5,500 psi
Production Rate13,000 BPD
Size (ID”)48”
Efficient Storage300 - 700 lbs
Capture Rate95+%
Temp Design (°F)-40 to 200
Design StandardASME Sec VIII Div I
Vessel Guardian
Guardian
Sandtinel Vessel Logo Guardian Alt 01 Final
FLOWBACK | DRILLOUT | WATER
TechnologyG4-S2
ApplicationFlowback / Production
MAWP10,000 psi
Production Rate13,000 BPD
Size (ID”)44"
Efficient Storage150 - 400 lbs
Capture Rate95+%
Temp Design (°F)-40 to 150
Design StandardASME Sec VIII Div I
Vessel General Unit
General
Sandtinel Vessel Logo General Alt 01 Final
MULTI-WELL | FACILITIES
TechnologyG4-S3
ApplicationFacility / Multi-well
MAWP1,440 BPD
Production Rate60,000
Size (ID”)96”
Efficient Storage1,000 - 4,000 lbs
Capture Rate95+%
Temp Design (°F):-40 to 150
Design Standard:ASME Sec VIII Div I
Diamond Red Gradient

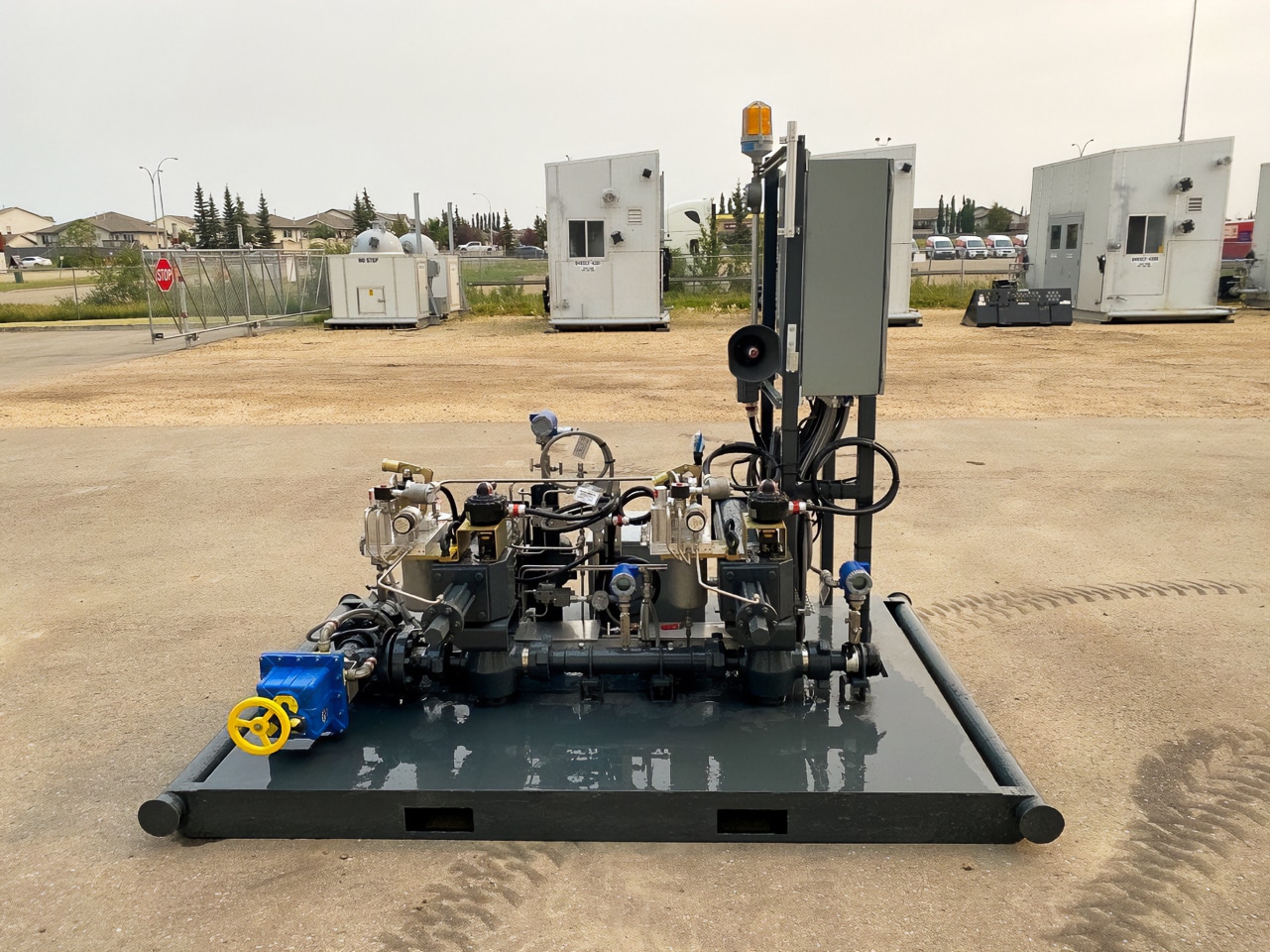

Dispatcher Auto-Dump System

Trusted, automated, real-time control.

The Sandtinel Dispatcher is an automated dump solution fully integrated within the Sandtinel framework that can be operated on a timed basis or connected to Sandtinel's Sand Management System (SMS).

Sandtinel Dispatcher Features
  • Data-centric, remote control, cyber-secure.
  • Supervisory control system software regularly updated with new features.
  • 24/7 operator out of red zone, monitors multiple pad sites.
  • Minimize stray GHG emissions in sand dumping.
  • Synergy with gas capture and processing for zero flare solutions.
  • Single well and multi-well applications.

Dispatcher Features

Diamond Icon Placeholder

Flexible Dump Frequency

Automated: Connected to SMS
Timed: Set Intervals
Diamond Icon Placeholder

Instrumentation

3x PIT Included to identify any blockages or washing in the system.
Diamond Icon Placeholder

Fail State

Hydraulic system fail closed (plug valves), electric system fail last (choke valve).
Diamond Icon Placeholder

Control

Remote Configuration Capability

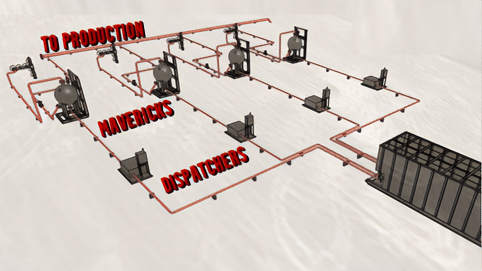

Multi-Well Dispatcher: Learn More Here

Auto-Dump System

Simple, Safe, Sand Management

Sandtinel technology is the most sophisticated sand separation solution in the industry pushing the limits of what is possible in surface sand control.

Book a Demo

Today

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Our Locations:

There are hundreds of Sandtinel units in use across North America, and we're here to support your operations in any basin with offices in:
